camel系列-聚合器

发表于 更新于

概念

EIP 模式中的聚合器允许您将多个消息组合成一条消息。

我们如何组合单个但相关消息的结果，以便将它们作为一个整体进行处理？

使用有状态过滤器（聚合器）来收集和存储单个消息，直到收到完整的相关消息集。然后，聚合器发布从各个消息中提取的单个消息。

聚合器是最复杂的 EIP 之一，具有许多功能和配置。

关联表达式(correlationExpression)

关联表达式表示聚合数据相关联的关键标识分类，如下 DSL 示例，correlationExpression 标识根据 header 的 myId 标识进行分组聚合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<route>
	<from uri="direct:start"/>
	<!-- log the incoming message -->
	<log message="Sending ${body} with correlation key ${header.myId}"/>
	<!-- aggregate using the aggregation strategy and complete when 3 messages
								 has been aggregated -->
	<aggregate strategyRef="myAggregationStrategy" completionSize="3">
		<!-- a correlation expression must be provided -->
		<correlationExpression>
			<!-- we use the header with key myId,
												 but you can use any Camel Expression you like -->
			<header>myId</header>
		</correlationExpression>
		<!-- log the published outgoing message -->
		<log message="Sending out ${body}"/>
		<!-- and send it to a mock endpoint -->
		<to uri="mock:result"/>
	</aggregate>
</route>

聚合数据实例，A，B，C 作为为一组数据，以键 myId 值为 1 的标识 header 进行聚合

1
2
3
4
5
6
7
8
template.sendBodyAndHeader("direct:start", "A", "myId", 1);
// send the 2nd message with the same correlation key
template.sendBodyAndHeader("direct:start", "B", "myId", 1);
// the F message has another correlation key
template.sendBodyAndHeader("direct:start", "F", "myId", 2);
// now we have 3 messages with the same correlation key
// and the Aggregator should publish the message
template.sendBodyAndHeader("direct:start", "C", "myId", 1);

聚合策略(AggregationStrategy)

自定义Exchange 的聚合策略，通常是对 2 个 Exchange 数据进行合并操作。通常第一次调用 oldExchange 参数为空，在随后的调用中，oldExchange 包含合并的 Exchange。

自定义的聚合策略需要实现 AggregationStrategy 接口的 aggregate 方法，如下示例

MyAggregationStrategy 对 2 个Exchange 的数据进行了合并

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public interface AggregationStrategy {
    Exchange aggregate(Exchange oldExchange, Exchange newExchange);
}

public class MyAggregationStrategy implements AggregationStrategy {

    public Exchange aggregate(Exchange oldExchange, Exchange newExchange) {

        if (oldExchange == null) {
            return newExchange;
        }

        String oldBody = oldExchange.getIn().getBody(String.class).trim();
        String newBody = newExchange.getIn().getBody(String.class).trim();
        String body = oldBody + newBody;
        oldExchange.getIn().setBody(body);
        return oldExchange;
    }

}

完成条件

当在某个时候聚合Exchange时，您需要指示聚合的交换已完成，因此可以将它们发送出聚合器。Camel 允许您以各种方式指示完成，如下所示：

完成大小(completionSize)

聚合完成之前聚合的消息数，表示在达到该数据大小之后，聚合就完成了，再做聚合操作，如上 DSL 示例，**completionSize 设置为 3，完整示例的输出结果为**Sending out ABC

1
2
3
4
5
2022-04-28 15:35:41,179 [                     main] INFO  route1                         - Sending A with correlation key 1
2022-04-28 15:35:41,189 [                     main] INFO  route1                         - Sending B with correlation key 1
2022-04-28 15:35:41,191 [                     main] INFO  route1                         - Sending F with correlation key 2
2022-04-28 15:35:41,194 [                     main] INFO  route1                         - Sending C with correlation key 1
2022-04-28 15:35:41,202 [                     main] INFO  route1                         - Sending out ABC

完成超时(completionTimeout)

是一个不活动超时，如果在此期间内没有为该特定关联键聚合新交换，则会触发该超时。

  1. DSL 定义
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<route>
	<from uri="direct:start"/>
	<!-- log the incoming message -->
	<log message="Sending ${body}"/>
	<!-- aggregate using the aggregation strategy and complete when either
								 2 messages has been aggregated or 5 sec timeout occurred -->
	<aggregate strategyRef="myAggregationStrategy" completionSize="2" completionTimeout="5000">
		<!-- a correlation expression must be provided -->
		<correlationExpression>
			<!-- we use the xpath expression,
												 but you can use any Camel Expression you like -->
			<xpath>/order/@customer</xpath>
		</correlationExpression>
		<!-- log the published outgoing message -->
		<log message="Sending out ${body}"/>
		<!-- and send it to a mock endpoint -->
		<to uri="mock:result"/>
	</aggregate>
</route>
  1. 测试消息

由于 honda 只有一条消息，等不到 completionSize 为 2 的数量大小，那么 5 秒后就超时了

1
2
3
4
5
6
7
8
9
10
@Test
public void testXML() throws Exception {
	MockEndpoint mock = getMockEndpoint("mock:result");
	mock.expectedMessageCount(2);
	template.sendBody("direct:start", "<order name=\"motor\" amount=\"1000\" customer=\"honda\"/>");
	template.sendBody("direct:start", "<order name=\"motor\" amount=\"500\" customer=\"toyota\"/>");
	template.sendBody("direct:start", "<order name=\"gearbox\" amount=\"200\" customer=\"toyota\"/>");

	assertMockEndpointsSatisfied();
}

完成间隔(completionInterval)

每 X 周期完成一次所有当前聚合交换，即定时触发聚合。

如下示例，设置completionInterval 属性，定义间隔时长

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<route>
	<from uri="direct:start"/>
	<!-- log the incoming message -->
	<log message="Sending ${body}"/>
	<!-- aggregate using the aggregation strategy and complete when either
								 2 messages has been aggregated or 5 sec timeout occurred -->
	<aggregate strategyRef="myAggregationStrategy" completionSize="2" completionInterval="5000">
		<!-- a correlation expression must be provided -->
		<correlationExpression>
			<!-- we use the xpath expression,
												 but you can use any Camel Expression you like -->
			<xpath>/order/@customer</xpath>
		</correlationExpression>
		<!-- log the published outgoing message -->
		<log message="Sending out ${body}"/>
		<!-- and send it to a mock endpoint -->
		<to uri="mock:result"/>
	</aggregate>
</route>

完成谓语(completionPredicate)

当一个新的交换被聚合以确定我们是否完成时运行一个谓词。可以使用动态表达式来判断

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<route>
	<from uri="direct:start"/>
	<!-- log the incoming message -->
	<log message="Sending ${body} with correlation key ${header.myId}"/>
	<!-- aggregate using the aggregation strategy and check eager for completion -->
	<aggregate strategyRef="myEndAggregationStrategy" eagerCheckCompletion="true">
		<!-- a correlation expression must be provided -->
		<correlationExpression>
			<!-- we use the header with key myId,
												 but you can use any Camel Expression you like -->
			<header>myId</header>
		</correlationExpression>
		<!-- trigger completion when END message arrived -->
		<completionPredicate>
			<simple>${body} == 'END'</simple>
		</completionPredicate>
		<!-- log the published outgoing message -->
		<log message="Sending out ${body}"/>
		<!-- and send it to a mock endpoint -->
		<to uri="mock:result"/>
	</aggregate>
</route>

completionFromBatchConsumer

批处理消费者的特殊选项，允许您在批处理中的所有消息都聚合后完成。

forceCompletionOnStop

指示在上下文停止时完成所有当前聚合交换

AggregateController

允许使用外部源（AggregateController 实现）来完成组或所有组。

聚合存储库(AggregationRepository)

聚合器提供了一个可持久化的存储库接口，用于存储聚合期间的数据

  1. AggregationRepository接口定义
1
2
3
4
5
6
7
8
9
10
11
12
public interface AggregationRepository {

    Exchange add(CamelContext camelContext, String key, Exchange exchange);

    Exchange get(CamelContext camelContext, String key);

    void remove(CamelContext camelContext, String key, Exchange exchange);

    void confirm(CamelContext camelContext, String exchangeId);

    Set<String> getKeys();
}
  1. 接口实现

其中 MemoryAggregationRepository 是 AggregationRepository 的默认实现，还有其他的数据库的版本实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Override
protected RouteBuilder createRouteBuilder() throws Exception {
	return new RouteBuilder() {
		@Override
		public void configure() throws Exception {
			from("direct:start")
				.log("Sending ${body} with correlation key ${header.myId}")
				.aggregate(header("myId"), new MyAggregationStrategy())
				.aggregationRepository(new MemoryAggregationRepository()).completionSize(3)
				.log("Sending out ${body}")
				.to("mock:result");
		}
	};
}

聚合器分类

列表聚合器

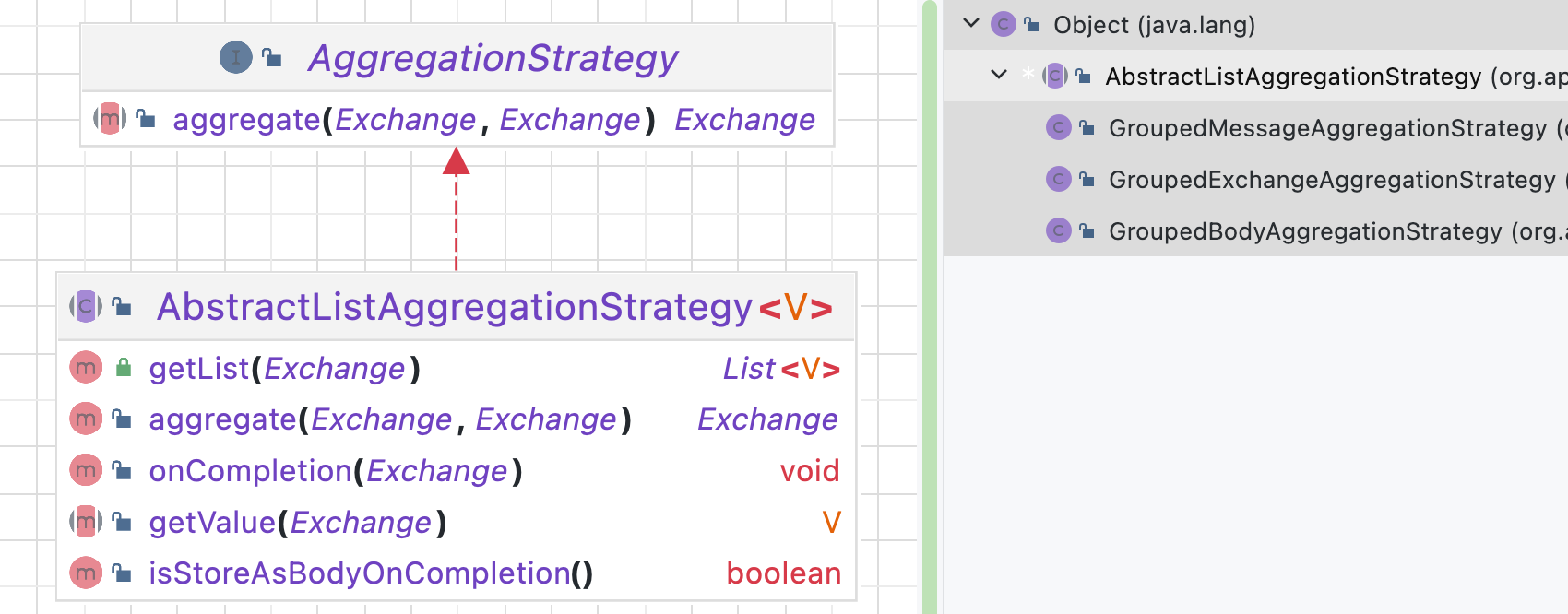

AbstractListAggregationStrategy 提供了 List 的操作，如下定义

子类可以实现 getValue 方法，来实现自定义列表聚合器

1
2
3
4
5
6
7
8
public class MyListOfNumbersStrategy extends AbstractListAggregationStrategy<Integer> {

    @Override
    public Integer getValue(Exchange exchange) {
        // the message body contains a number, so just return that as-is
        return exchange.getIn().getBody(Integer.class);
    }
}

除上述方法之外，还可以使用构造器构建

1
2
3
AggregationStrategy agg = AggregationStrategies.flexible(Integer.class)
    .accumulateInCollection(ArrayList.class)
    .pick(body());

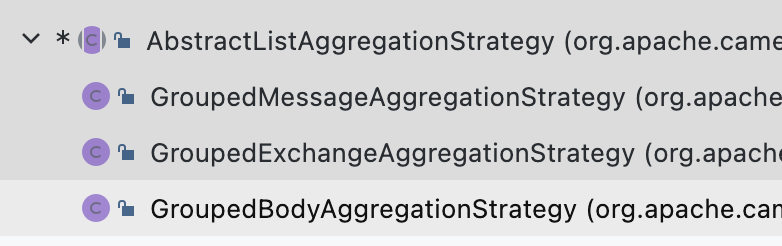

分组交换聚合器

使用 Camel 系统默认提供的 3 个聚合器

超时聚合

如果您的聚合策略实现TimeoutAwareAggregationStrategy了，那么 Camel 将timeout在超时发生时调用该方法。请注意，index 和 total 参数的值将是 -1，并且只有在配置为固定值时才会提供 timeout 参数。您不得timeout从该方法中抛出任何异常。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public interface TimeoutAwareAggregationStrategy extends AggregationStrategy {
    /**
     * A timeout occurred.
     * <p/>
     * <b>Important: </b> This method must <b>not</b> throw any exceptions.
     *
     * @param oldExchange  the current aggregated exchange, or the original {@link Exchange} if no aggregation
     *                     has been done before the timeout occurred
     * @param index        the index, may be <tt>-1</tt> if not possible to determine the index
     * @param total        the total, may be <tt>-1</tt> if not possible to determine the total
     * @param timeout      the timeout value in millis, may be <tt>-1</tt> if not possible to determine the timeout
     */
    void timeout(Exchange oldExchange, int index, int total, long timeout);
}
